TYGON®-Schlauch E-LFL

Features

  • longest flex life of any clear Tygon® tubing
  • broad chemical resistance
  • can be autoclave
  • extremely low particulate spallation
  • meets USP Class VI, ISO 10993, NSF-51 and FDA criteria

  • reduces downtime due to pump failure
  • excellent for laboratory applications
  • suitable for high purity applications
  • reliable for sensitive-fluid applications

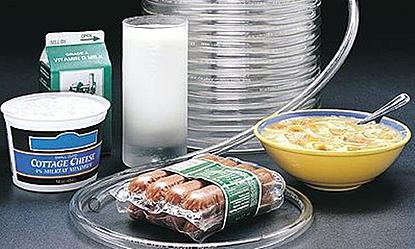

  • suitable for pharma, medical and food applications

Beschreibung

Development of new Tygon® Long Flexible Life (E-LFL) tubing has been driven by emerging global and regional regulations, such as Europe’s REACH, EU Food directives and California Prop 65 as well as customer perceptions regarding the use of Bis (2-ethylhexyl) phthalate (DEHP) in flexible tubing products. We are replacing the original Tygon® LFL with the new non-DEHP tubing part of our commitment to our customers for products’ safety and quality. The new Tygon® E-LFL Non-DEHP tubing is our best performing peristaltic pump tubing and has no industry equivalent.
The new tubing utitilizes entirely bio-based plasticizers. Tygon® E-LFL has been tested rigorously to ensure that it meets the same physical standards, including 1,000 hours of peristaltic pump tubing life at 0 psi back pressure, low particulate spallation and chemical resistance as the old Tygon® LFL tubing.
Non-DEHP Formulation Tygon® Tubing Provides Optimal Peristaltic Pump Performance
Crystal-clear Tygon® E-LFL tubing is formulated specifically for use in peristaltic pump applications. The new Tygon® E-LFL non-DEHP tubing has even longer pump life not only at 0 psi but also at back pressure of up to 25 psi. The peristaltic pump life performance at different back pressures is shown on the back page. With its superior flex life characteristics, Tygon® E-LFL tubing reduces production downtime due to pump tubing failure. Our tests demonstrated reduced particle spallation, which eliminates the need for frequent downstream filter replacement and diminishes the risk of sensitive-fluid contamination. This is critical in several applications, such as pharmaceutical, high purity chemicals, cosmetics and food.
Various Benefits of Using non-DEHP Tygon® Long Flexible Life Tubing
The non-aging and broad chemical resistance properties of Tygon® E-LFL enable users to utilize the new tubing for transferring chemicals, cleaning agents and bactericides without danger of corrosion (as with metals) or oxidation (as with rubber). Tygon® E-LFL is safe and non-toxic and can be sterilized through conventional autoclave methods (steam 30 minutes at 15 psi. 121º C) and EtO (Ethylene Oxide), making it an excellent choice for high purity applications. It can be produced in up to a 6" (15.6 cm) inside diameter, ideal for bulk transfer applications.

Downloads

  • Datenblatt TYGON®-Schlauch E-LFLDownload

Technische Daten

Typische physikalische Eigenschaften von TYGON®-Schlauch E-LFL




Größen / Size

Mindestbiegeradius

Minimum Bend Radius

Maximaler Betriebsdruck

Maximum Working Pressure

Vauumdruck

Vakuum Rating of Mercury

mm

Inches

ID

AD

Wand

ID

AD

Wall

mm

Inches

bar bei 23° C

Psi at 73° F

mm* bei 23° C

Inches* at 73° F

1,60

4,80

1,60

1/16

3/16

1/16

6,35

1/4

3,50

50

759,46

29,9

3,20

6,40

1,60

1/8

1/4

1/16

12,70

1/2

2,30

34

759,46

29,9

4,80

8,00

1,60

3/16

5/16

1/16

19,05

3/4

1,70

25

759,46

29,9

6,40

9,60

1,60

1/4

3/8

1/16

25,40

1

1,40

20

381,00

15

6,40

12,80

3,20

1/4

1/2

1/8

19,05

3/4

2,40

35

759,46

29,9

8,00

11,20

1,60

5/16

7/16

1/16

31,75

1 - 1/4

1,10

16

254,00

10

9,50

15,90

3,20

3/8

5/8

1/8

25,40

1

1,70

25

759,46

29,9

12,70

19,10

3,20

1/2

3/4

1/8

38,10

1 - 1/2

1,40

20

508,00

20

19,00

31,80

6,40

3/4

11/4

1/4

44,45

1 - 3/4

1,70

24

759,46

29,9

25,40

35,00

4,80

1

13/8

3/16

82,55

3 - 1/4

1,00

15

127,00

5

*Millimeter in der Quecksilbersäule(Torr)/ Inch of Mercury
**Das Verhältnis von Betriebsdruck beträgt hier 1:5 (ASTMD1599)
**Working pressures are calculated at 1:5 ratio relative to burst pressure using I'ASTMD1599

Typische physikalische Eigenschaften

Typical Physical Properties

ASTM Method

Wert / Value

Härte / Hardness Shore 15 A, 15 sec

D2240

56

Farbe / Color



durchsichtig /

clear

Zugfestigkeit / Tensile Strength, psi (MPa)

D412

1,800 (12,4)

Maximale Dehnung / Ultimate elongation (%)

D412

400

Reißfestigkeit / Tear resistance (kN/m)

D1004

184 (32,2)

Dichte / Specific Gravity

D792

1,17

Wasserabsorption / Water Absorption

D570

0,20

Druckverformungstest konstante Durchbiegung / Compression set constant deflection (% at 70° C during 22 hours )

D395

68

Versprödungstemperatur / Brittle Temperature (° C)

D-746

- 51

Empfohlene maximale Betriebstemperatur/

Maximum recommended operating temperature (° C)

-

74

Biegsamkeit bei niedrigen Temperaturen/

Low Temperatue Flexibility (° C)

D380

- 55

Spannungsmodul bei 100% Dehnung /

Tensile modulus @100% psi (MPa)

D412

550 (3,8

Spannungsmodul bei 200% Dehnung /

Tensile modulus @200% psi (MPa)

D412

950 (6,6

Streckgrenze / Tensile set (%)

D412

54






Variationen Anfrage

BezeichnungArtikelnummerFarbcodeInnen Ø mmAußen Ø mmNenn Ø mmLiefer Ø mmWanddicke mmAnz. StopperEinheitLagerMindestabnahmePreisMenge
TYGON® S3™-Schlauch E-LFL35200011.604.801.6037,5 m
TYGON® S3™-Schlauch E-LFL35200023.206.401.6027,5 m
TYGON® S3™-Schlauch E-LFL35200034.808.001.6027,5 m
TYGON® S3™-Schlauch E-LFL35200046.409.601.607,5 m
TYGON® S3™-Schlauch E-LFL35200056.4012.803.2027,5 m
TYGON® S3™-Schlauch E-LFL35200068.0011.201.6037,5 m
TYGON® S3™-Schlauch E-LFL35200079.5015.903.2027,5 m
TYGON® S3™-Schlauch E-LFL352000812.7019.103.2037,5 m
TYGON® S3™-Schlauch E-LFL352000919.0031.806.4033 m
TYGON® S3™-Schlauch E-LFL352001225.4035.004.8033 m
* Angaben in mm.

Nicht das passende dabei? Nennen Sie uns Ihr Wunschprodukt:

BezeichnungFarbcodeInnen Ø mmAußen Ø mmNenn Ø mmLiefer Ø mmWanddicke mmAnz. StopperMenge
TYGON®-Schlauch E-LFL
* Angaben in mm.
